In today's fast-paced life where time is money, charging your phone seems to have quietly become part of what we want to be "fast". There are also understandable reasons for this change. Let's take a deeper look at why this "fast" is acceptable to people. The benefits it brings, its safety, and the products we recommend.
What USB-C wall and cable chargers are the fastest?
USB-C wall chargers and cables are able to provide fast charging due to a combination of factors including high power output, USB PD technology, GaN technology, high-quality cables, and device compatibility. The following factors ensure that the charging process is both fast and safe.
- High Power Output:First, wall chargers can provide fast charging because they are designed with higher power output. High power output allows more energy to be transferred to the device in a shorter amount of time. For example, a USB-C charger that supports 100W or higher power can charge a device much faster than a traditional 5W charger. This means more energy is delivered to the battery, significantly reducing charging time.
- USB Power Delivery (PD) Technology:Secondly, USB-C chargers and cables can support fast charging because they typically use USB Power Delivery (PD) technology. This technology allows the charger and the device to communicate intelligently, determining the optimal voltage and current needed by the device. As a result, the charging process is optimized for faster speeds. With PD technology, the device receives more power within safe limits, ensuring a quick but safe charging process.
- Gallium Nitride (GaN) Technology:In addition, the realization of fast charging is also made possible by the use of Gallium Nitride (GaN) technology in some chargers. GaN technology enables chargers to handle high power output more efficiently without generating as much heat as traditional silicon-based chargers. This means that chargers can maintain a smaller size while delivering higher power and efficiency, supporting faster charging speeds.
- High-Quality Cables:Meanwhile, the quality of the cable is also a crucial factor in fast charging. High-quality USB-C cables are typically made with thicker copper wires, which reduce resistance and allow current to flow faster and more steadily to the device. Low-quality or thin cables may restrict the flow of current, thus slowing down the charging speed. Therefore, choosing a high-quality cable that supports high power transmission is essential to ensuring fast charging.
- Device Compatibility:Lastly, the compatibility of the device itself also affects charging speed. Fast charging can only be fully realized when the device supports fast charging protocols such as USB PD. If the device does not support these protocols, even with a high-power charger and quality cable, the charging speed may not increase significantly.
Best usb-c wall charger and cable charger
When designing a charger, we will consider product performance, manufacturing cost, and safety of use in order to meet users' needs for fast charging. The following are the most cost-effective mobile phone charging and data cables we recommend.
USB-C wall charger
IET SD1403C2A charger
Description: This charger uses GaN (gallium nitride) technology and is equipped with two USB-A ports and three Type-C charging ports. It can provide high power output while being more compact and efficient than traditional chargers. It can provide up to 140W of power, enough to charge laptops, smartphones, and tablets at the same time.
Product parameters
- Input: 100-240 V 50/60Hz 2.5A
- Output:C1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A, PPS: 3.3-21V 5A
- C2/C3: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, PPS: 3.3-21V 5A
- A1/A2: 4.5V/5A, 5V4.5A, 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
- C1+C2+C3+A1+A2: 65W+30W+20W+5V2A+5V2A
- Color:Gray, Black, White or customization you want.
- Compact and portable design.

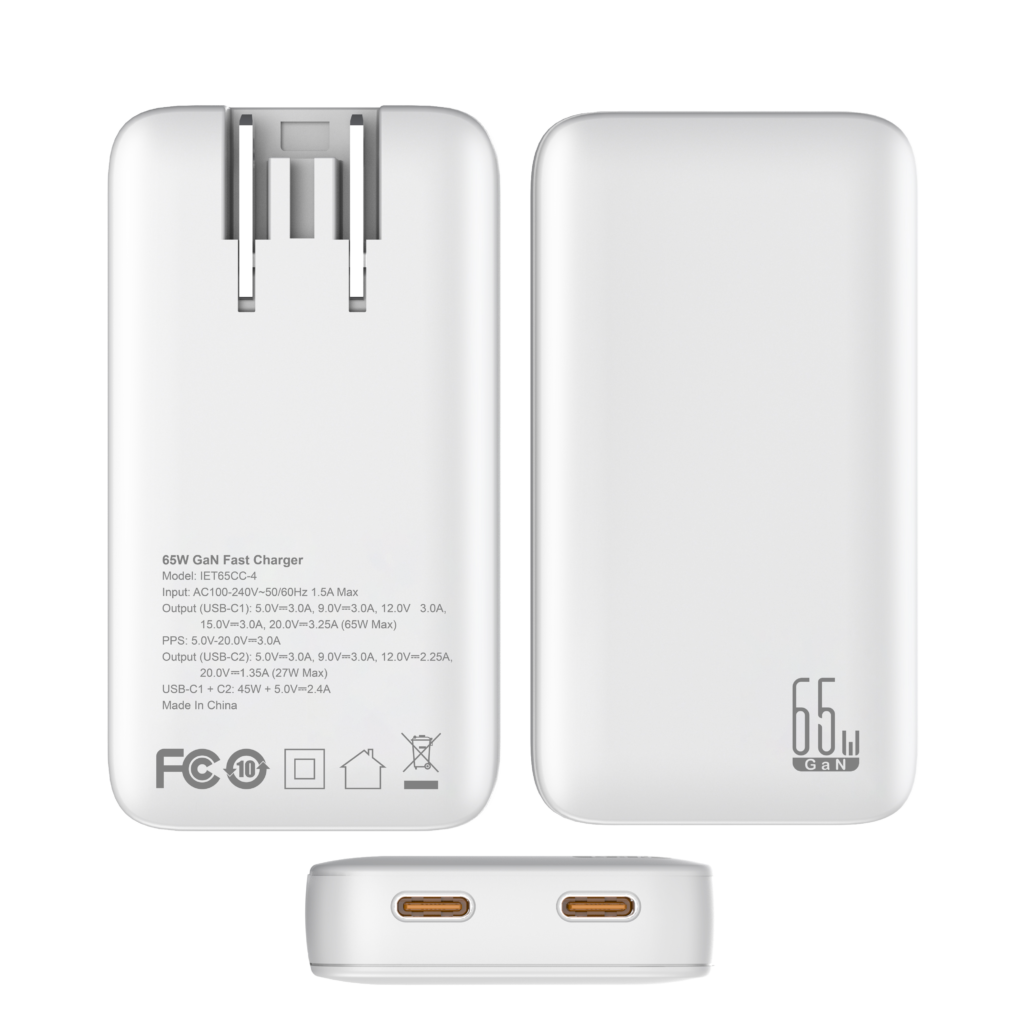

IET65CC-4 ultra slim 65W GaN 2C charger
Description: The charger itself features an ultra-thin and compact design, which is a stark departure from bulky alternatives. It's the perfect space-saving solution for plugging into an outlet behind furniture. With a slim profile of only 5.13.551.4cm and a folding plug, it can be easily stored in a bag or pocket, making it an ideal travel companion. Equipped with PD 3.0 Type-C power delivery, our USB C charger delivers a maximum output of 65W. This means it can charge your iPhone 14 to 50% in just 30 minutes. The same charger also uses GAN's charging technology, which makes charging 5 times faster.
Product parameters
- Input: 100-240V AC-50/60Hz 1.5A Max
- Output(C1/C2): 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A (65W Max)
- C1+C2: 45W + 5V2.4A
- PPS: 5V-20V3A
- Support:PD2.0, PD3.0, QC2.0, QC3.0, SCP, ACF, FCP, Apple 2.4A
- Size: 8.4*4.55*1.46cm
- Material: PC Fireproof (Fire Rating 94V0)
USB Cables

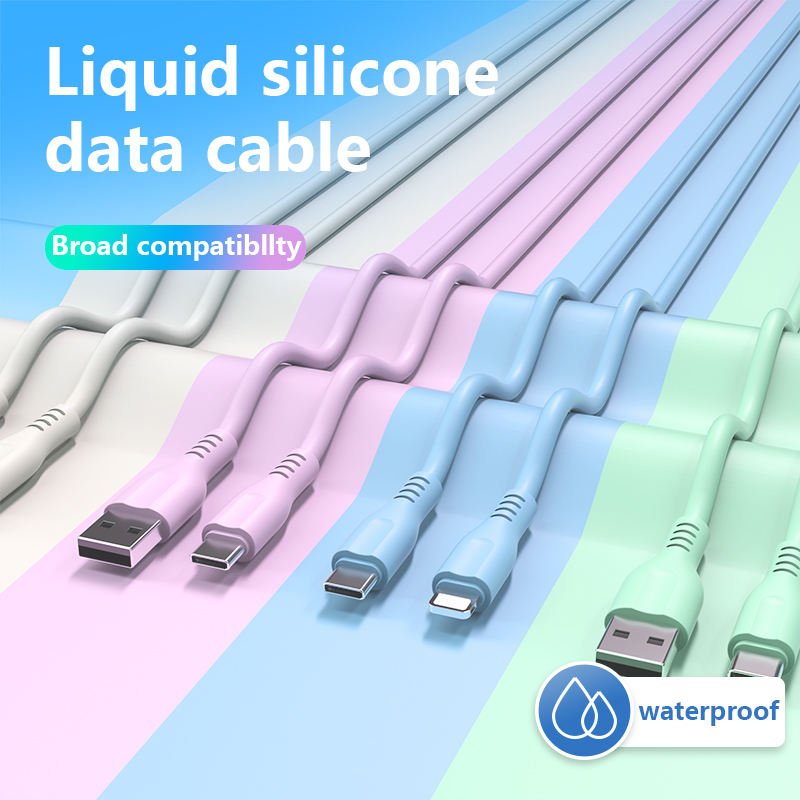

IET2023C02 Silicone usb cable
Description: This cable features a unique silicone coating that feels as soft as baby skin when plugged into your device. Reinforced strain relief design makes the charger cable last longer and more durable. Withstands over 25,000 bend tests. Flexible silicone material prevents the cable from knotting and tangling.
Conclusion
In general, chargers like the IET SD1403C2A charger and IET65CC-4 power adapter, when used with a USB-C to USB-C cable, provide the fastest charging experience. These devices are designed to support high power output and use advanced charging technology to ensure that your devices are fully charged in the shortest possible time. If you have any other product needs, please feel free to contact us!
